High-end

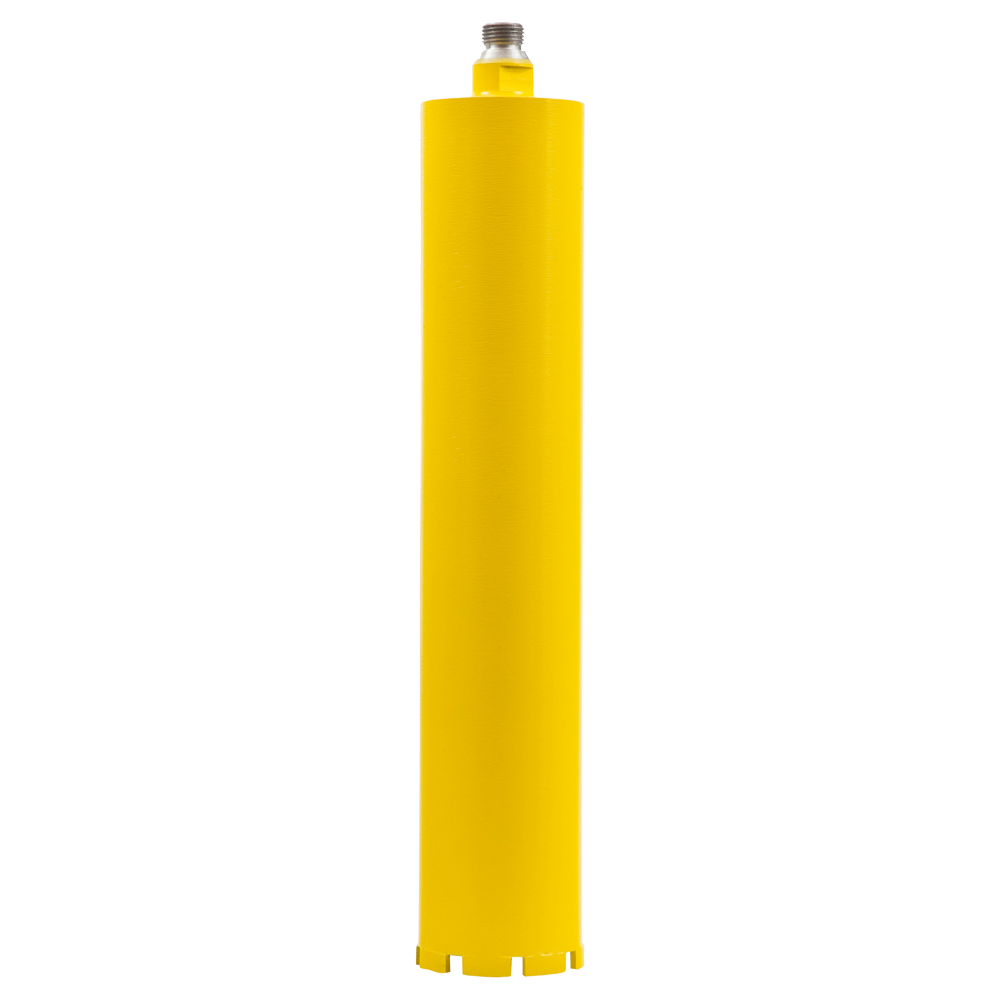

Thin-walled
InterDynamics thin-walled diamond drill bits are lightweight and feature a thin segment, allowing them to drill quickly in stone and (reinforced) concrete. Suitable for use in water-supplied hand diamond drills.
Available in diameters: 10 to 161 mm.
Connection: 1/2″.
Length: 200 to 400 mm.
Number of segments (depending on drill diameter): crown, 4 to 12.
Segment height: 9 mm.
Segment thickness (depending on drill diameter): 1.8 mm and 2.5 mm.

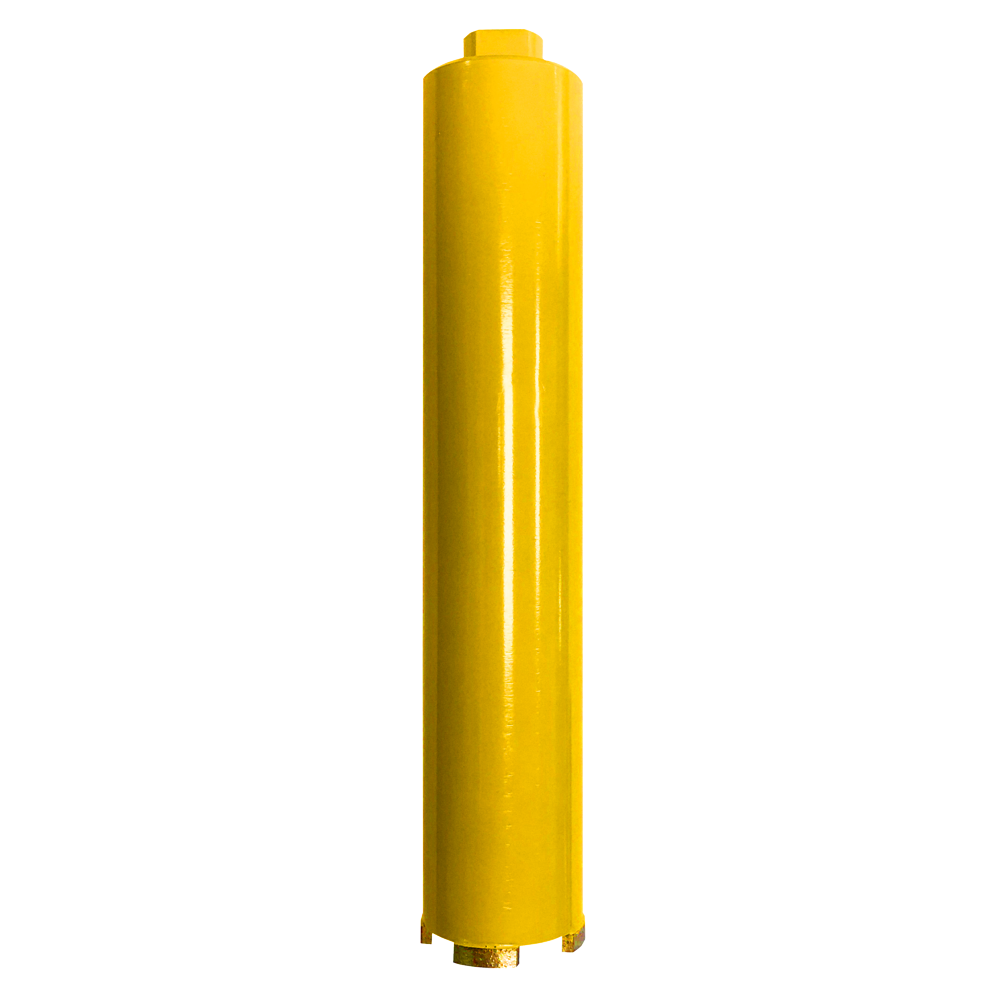

Thick-walled
For really heavy-duty work, there are thick-walled wet drills for drilling with a diamond drill motor with a stand and water supply. These wet drills are highly suitable for extremely hard materials and drilling large diameters.
Available in diameters: 20 to 300 mm.
Connection: 5/4″.
Length: 400 mm.
Number of segments (depending on drill diameter): crown, 4 to 20.
Segment height: 9 mm.
Segment thickness (depending on drill diameter): 2.5 mm, 3.5 mm, and 4.5 mm.

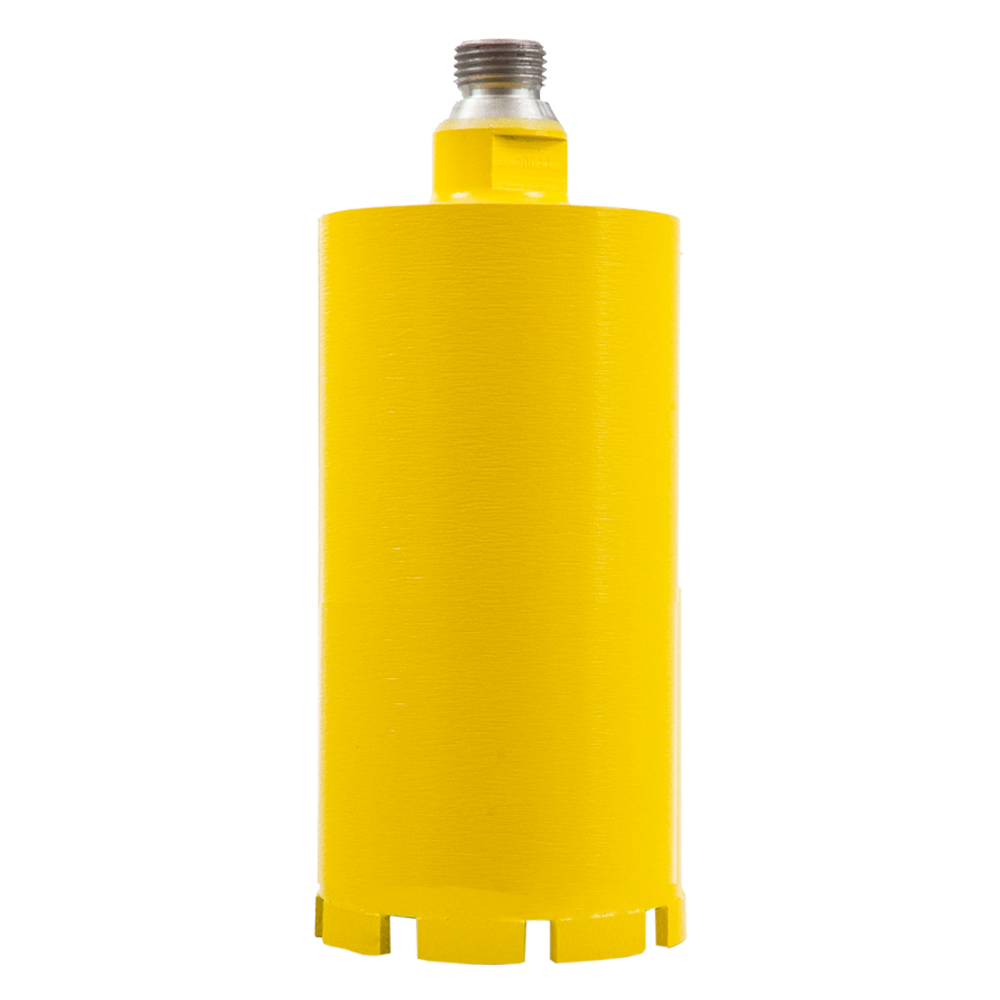

Natural Stone
Specially developed for wet sawing in granite and marble. These thin-walled diamond drills cut quickly through various types of natural stone. Due to the short length, the drill is easy to handle. Suitable for use in handheld diamond drills.
Available in diameters: 6.3 to 150 mm.
Connection: 1/2″.
Length: 50 mm and 120 mm.
Number of segments (depending on drill diameter): crown, 4 to 11.
Segment height (depending on drill diameter): 8 mm and 9 mm.
Segment thickness (depending on drill diameter): 1.2 mm, 1.7 mm, 1.8 mm, and 2.5 mm.
